Capacitive Touch Panel

Rugged and Completely Sealed, We Give Value to Touches

What are the Different Applications of Touch Screen Technology

Our touch integration competence center supports your design, evaluates the final functionality and supports your design. We supply utilize the most cutting edge touch technology today.

Moisture Tolerance


Gloved Touch

Hovering Touch

Core Technology

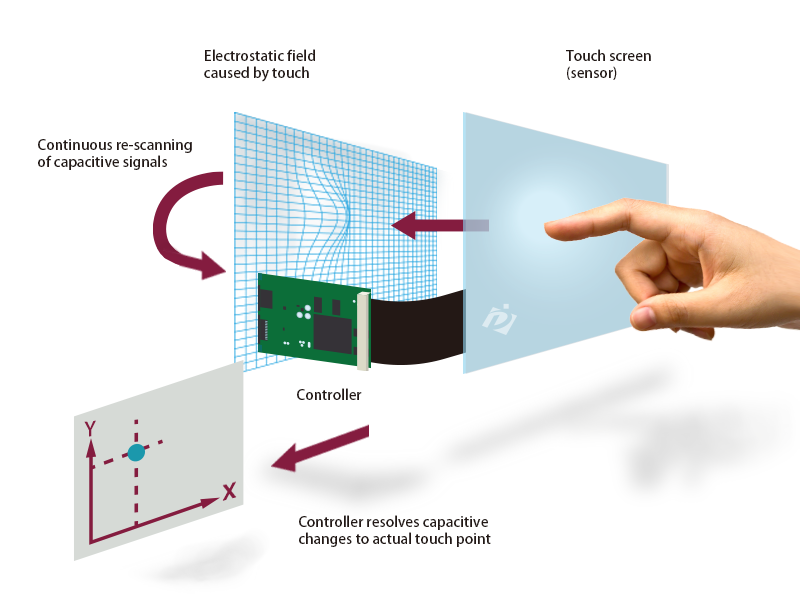

Touchscreens with PCAP Technology

CTP technology is a capacitive technology which permits more accurate and flexible operation, projection of the touch field through additional layers of material plus full multi touch capability. Typical construction of a CTP technology sensor allows for operation without direct contact to the touch sensor. Thus the touch sensor can be located behind further insulating layers, and operate even under screen protectors, or behind weather and vandal-proof glass. Due to the top layer of a CTP being glass, CTP is a more robust solution versus resistive touch technology. Since CTP technology construction is an X and Y matrix of capacitors capable of locating multiple distinct touchpoints, PCAP touch sensors are true multi touch capable.

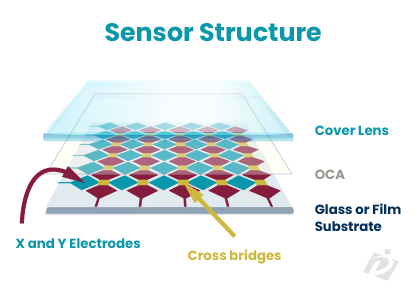

Sensing Layers

Senses the touch through projected electrical fields and changes in the circuit capacitance to locate the touch events.

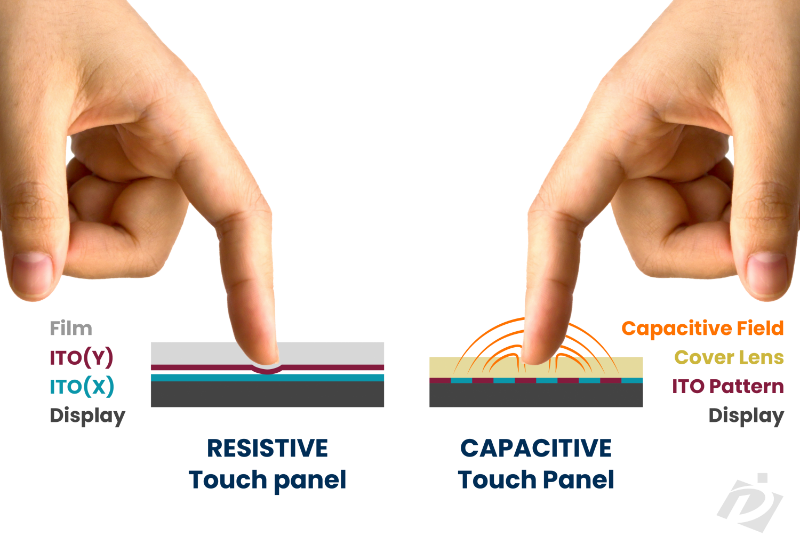

Touch Controller Firmware

Controls the features and touch performance of the solution, and often needs to be re-written (tuned) to support application and use case requirements.

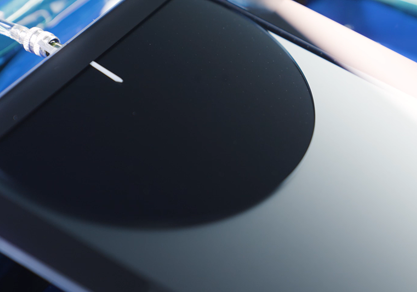

Optical Bonding

The elimination of an air gap between the cover glass and the display preventing moisture from entering that could cause fogging on the display's surface.

Water Handling

On certain industrial applications, water can accumulate on top of PCAP touch screens and trigger false touches. To avoid those false touches, the latest PCAP technology features water repellent surface treatments and a firmware algorithm to differentiate an actual touch from water droplets. These new features enable the touch screens to work flawlessly with challenging operating conditions.


Multi-touch can be used by you to enhance the efficiency of your organization and your business, thereby saving you costs and increasing profits. Multi-touch touch screen kiosks recognize the presence of multiple points of contact with the kiosk’s interface surface, thus speeding and simplifying the user’s interaction. This multi-point interactivity enables advanced functions such as pinch-to-zoom, fast-scrolling, and intuitive gesturing commands, all of which allow for quicker, more intuitive interaction between kiosk users and the host organization. This improved efficiency means that staff members can work faster and process customers quicker, preventing long queues and customer dissatisfaction.

Multi-touch can be customized to suit the requirements of any group. The firmware can be matched with different types of use cases such as glove use, touch when water is present, stylus use and other uniques input challenges.

Projected Capacitive Touch Displays Advantages

 Functional through multiple layers

 Works outdoors
 True flat front surface design possible
 Long life reliability
 Durable and easily customizable front surfaces
 Excellent Optical Properties
 True Multi-Touch capable
 Easy Integration
 Drift free Operation

Technology support
